Multi Blade Block Cutter Tshuab

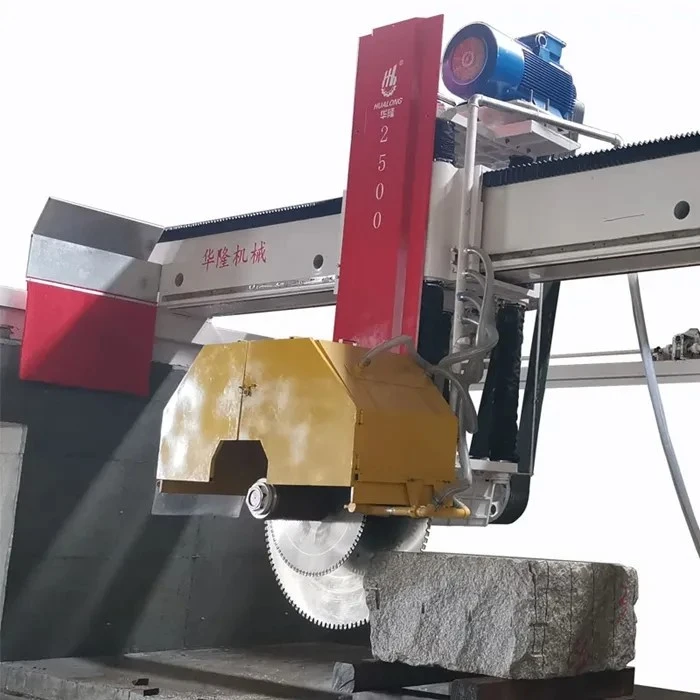

HLYQ-2500 multi blade block cutter tshuab yog ib qho ntawm cov pob zeb txiav tshuab tsim thiab tsim los ntawm Hualong Company.
Hauj lwm lawm
HLYQ-2500 multi blade block cutter tshuab yog ib qho ntawm cov pob zeb txiav tshuab tsim thiab tsim los ntawm Hualong Company. Lub tshuab no siv cov qauv txuas ntev ntev, thiab cov qauv tag nrho yog ua los ntawm cov kab loj loj loj thiab cov hlau hardness siab. Nws tuaj yeem zam cov teeb meem zoo li kev vibration, khoov lossis deformation los ntawm lub siab loj tsim los ntawm lub tshuab thaum txiav cov blocks thiab xa mus rau tus ncej. Zuag qhia tag nrho stability yog zoo heev. Nws tuaj yeem ua kom muaj kev ruaj ntseg ntawm cov saw hniav thaum txiav. Tsuas yog kev ruaj ntseg zoo ntawm cov saw hniav tuaj yeem ua rau qhov txiav nto smoother. HLYQ-2500 yog dav siv rau kev txiav ntau yam blocks, tshwj xeeb tshaj yog rau kev txiav cov blocks loj xws li granite thiab marble rau hauv cov blocks.
hniav pawg (2 txoj kev)
HLYQ-2500 muab cov hniav sib xyaw nrog cov kab sib txawv los txiav cov blocks tib lub sijhawm. Txog li 18 saws tuaj yeem sib sau ua ke, qhov tsawg kawg nkaus txoj kab uas hla ntawm cov saw hniav yog 1600mm, thiab qhov siab tshaj plaws txoj kab uas hla yog 3000mm. Cov hniav sib txawv tuaj yeem teeb tsa raws li qhov sib txawv txiav cov kev xav tau ntawm cov neeg siv khoom. Pom hniav ntawm txawv diameters tuaj yeem txiav ntawm qhov sib txawv siab tshaj plaws thiab qhov tob. Qhov siab tshaj plaws txiav ntev yog 3500mm, thiab qhov siab tshaj plaws txiav dav yog 2000mm.
HLYQ-2500 txais yuav Siemens plc tswj qhov system, uas tuaj yeem kho qhov nrawm ntawm cov blocks raws li qhov nyuaj ntawm pob zeb. Cov blocks tuaj yeem muab tso rau hauv av rau kev txiav, thiab txiav cov haujlwm ntawm cov blocks tuaj yeem ua tiav ib zaug. Ntau yam tseem ceeb tau txais cov khoom siv zoo tuaj txawv teb chaws, kev ruaj ntseg zoo ntawm lub tshuab tag nrho yog qhov zoo, thiab kev ua haujlwm automation kuj yog siab heev.Hualong HLYQ-2500 tshuab tsis tsuas yog muaj kev ua haujlwm siab thiab kev txiav siab siab, tab sis kuj muaj cov yam ntxwv ntawm siab flatness, siab stability thiab yooj yim ua hauj lwm tom qab txiav. Nws yog ib qho tseem ceeb heev thiab zoo heev txo tus nqi ntawm polishing. Yog li HLYQ-2500 yog qhov tsim nyog rau kev txiav cov nqi siab granite, marble thiab lwm yam khoom thaiv. Nws yog ib qho khoom siv zoo tshaj plaws rau thaiv kev ua haujlwm hauv tsev thiab txawv teb chaws.
Technical Data
| Qauv No. | HLQY-1600 | HLQY-2300 / 2500 | HLQY-3000 | |
| Max. hniav txoj kab uas hla | mm | 1600 | 2300 / 2500 | 3000 |
| Hom ntoo khaub lig | A / B | A / B | ||
| Hla-beam ntev | mm | 6000 | 7600 / 8300 | 8300 / 9300 |
| Txiav ntev | mm | 3500 | 3500 | 3500 |
| Txiav dav | mm | 2000 | 2000 | 2000 |
| Lifting stroke | mm | 800 | 800 | 800 |
| Lub zog ntawm lub cev muaj zog | kws | 55 (4P) | 55 (4P) | 55 (6P) |
| Lub zog ntawm lub twj tso kua mis | kws | 4 | 4 | 4 |
| Lub zog ntawm stroke motor | kws | 2.2 | 2.2 | 2.2 |
| Lub zog ntawm ntsug lub cev muaj zog | kws | 1.1 | 1.1 | 1.1 |
| Lub zog tag nrho | kws | 62.3 | 62.3 | 62.3 |
| Qhov hnyav tag nrho | kg | 10000 | 13000 / 14000 | 14000 / 15500 |
| Qhov Loj (LxWxH) | mm | 6500x5000x4000 | 7800x5000x4500 | 7800x5000x4500 |
Cov duab ntxaws
Tshuab Qhov
Lub npe: 6 tus ncej loj loj
Siv: zawv zawg qhia rau spindle
Npog los ntawm ntaub los tiv thaiv kev ua qias tuaj
Daim Ntawv Qhia Tawm
Brand: Hiwin
Keeb kwm: Taiwan, Suav
Cov khoom lag luam nto moo, zoo tshaj plaws siv rau crossbeam thiab carling rau kev ua tau zoo.
Tshuab Qhov
Lub npe: Circle Blade
Original: Suav teb
Txog li 18 daim ntawm cov hniav tuaj yeem raug dai rau kev tsim cov slabs nyias.
Electronic Control System
Hom Lub Npe: Siemens
Original: Germany
Cov khoom nto moo, nruab rau kev ruaj ntseg zoo thiab kev ua haujlwm siab automation.
kev sib tw kom zoo dua
Siemens ntse PLC tswj qhov system ua rau siab automation kev ua tau zoo thiab yooj yim.
Txais 4 tus ncej rau spindle zawv zawg, uas ua kom cov qauv ntawm lub tshuab ruaj khov thiab kev nqa khoom ruaj khov.
Ob-slider thav duab qauv tsav synchronized los ntawm cov ntsia hlau nrog siab nruj thiab ruaj khov.
Sliding system ntawm X thiab Y axes ntawm cov lus qhia thiab racks ob qho tib si hauv cov roj da dej lubrication pab kom du thiab ua haujlwm siab.
Cov neeg siv khoom 'Spot
