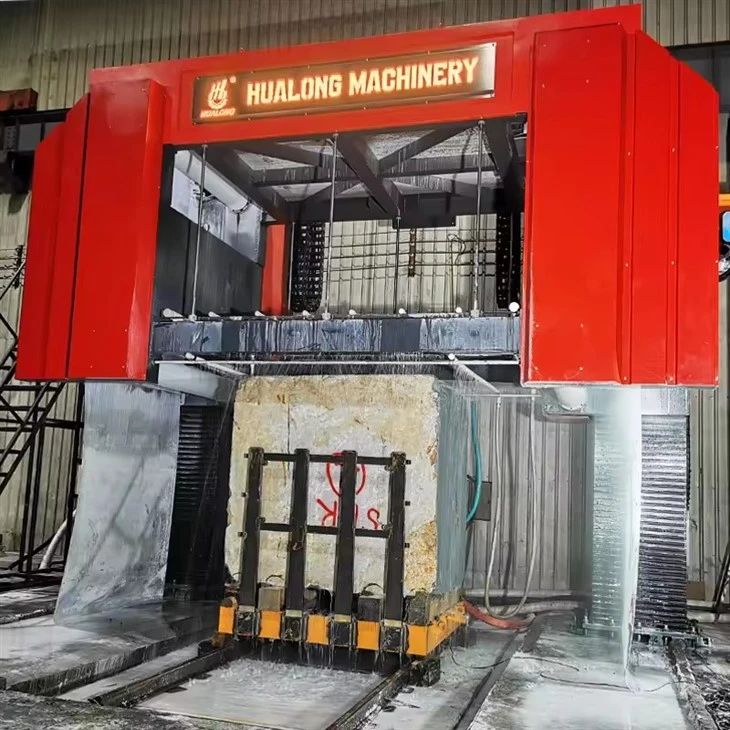

Super Thin Multi Wire Saw Machine

Super Nyias Multi Hlau Saw Tshuab

HLMW-100/150 Super Thin Multi Wire Saw, lub tshuab tshiab zoo kawg nkaus tsim los ntawm HUALONG Machinery txhais lub cim tshiab pob zeb thaiv kev siv tshuab, nrog 0.3-0.8 hli nyias pob zeb diamond xaim nqa tawm tus nqi ntau dua 97%. Nws yog lub tshuab tom ntej ntawm koj li txiav thaiv rau slabs rau ntau yam txiaj ntsig raws li hauv qab no:

1) High yield - me me hlau saws nrog tsuas yog 0.4-0.7mm txiav grooves pab kom muaj txiaj ntsig ntau dua 97%, 15-20% siab dua li cov pa

2) Emission txo ntawm pob zeb hmoov: tshaj 90%
3) txo suab nrov - Tsis muaj kev vibration, txo suab nrov tshaj 40 dB
4) Ultra nyias slabs hauv qab 10mm tuaj yeem ua tau
5) High precision tiv thaiv hlau cov cim thiab txhim kho cov slab flatness los ntawm 50%
6) Qhov chaw txuag - txo cov cuab yeej hneev taw los ntawm ntau dua 30%

Super Fine Multi Hlau Saw Tshuab

Multi Wire Saw Machine

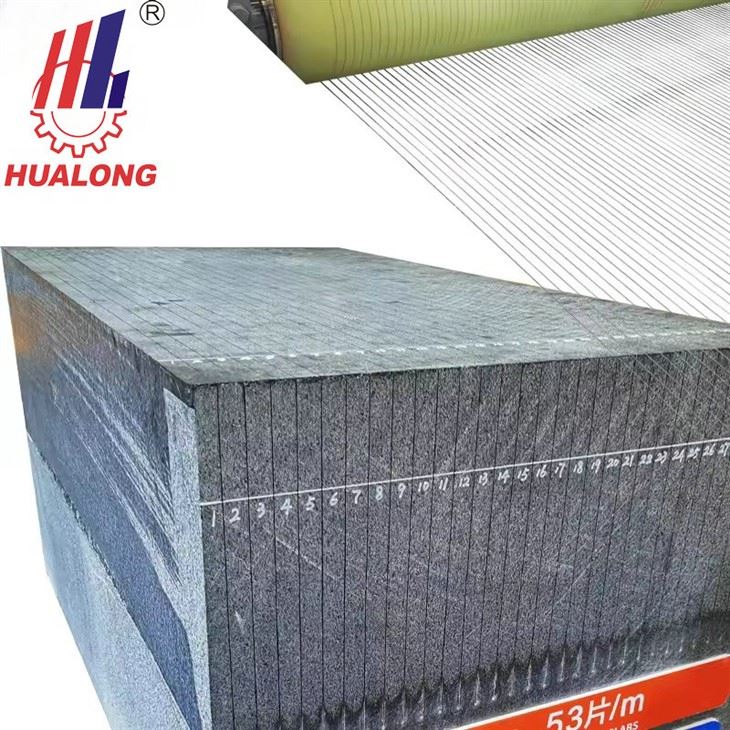

* Cov zis: 90 pcs / m rau 1.08cm tuab slabs

* Tus nqi tso zis: 98.2%

* Kev txo qis ntawm pob zeb hmoov: 90%

* Ntau du nto txiav

TECHNICAL DATA:

Technichal Data for HLMW-100/150
Txoj kab uas hla ntawm pob zeb diamond hlau	mm	0.3 - 0.8
Max. ntim ntawm xaim khaws cia	km	30 / 50
Kev khiav hauj lwm kab ceev	m/s	25 - 40
Thickness ntawm slabs txiav	mm	5 - 30
Max. tus naj npawb ntawm cov txiav	ib daim	100 / 150
Max. processable loj ntawm thaiv	mm	3500x2100x2100
Max. spindle ceev	rpm / min	3000
Main lub cev muaj zog	kws	60
Lub zog tag nrho	kws	310
Qhov Loj (LxWxH)	mm	7800x4800x6580
